Product Condition: New

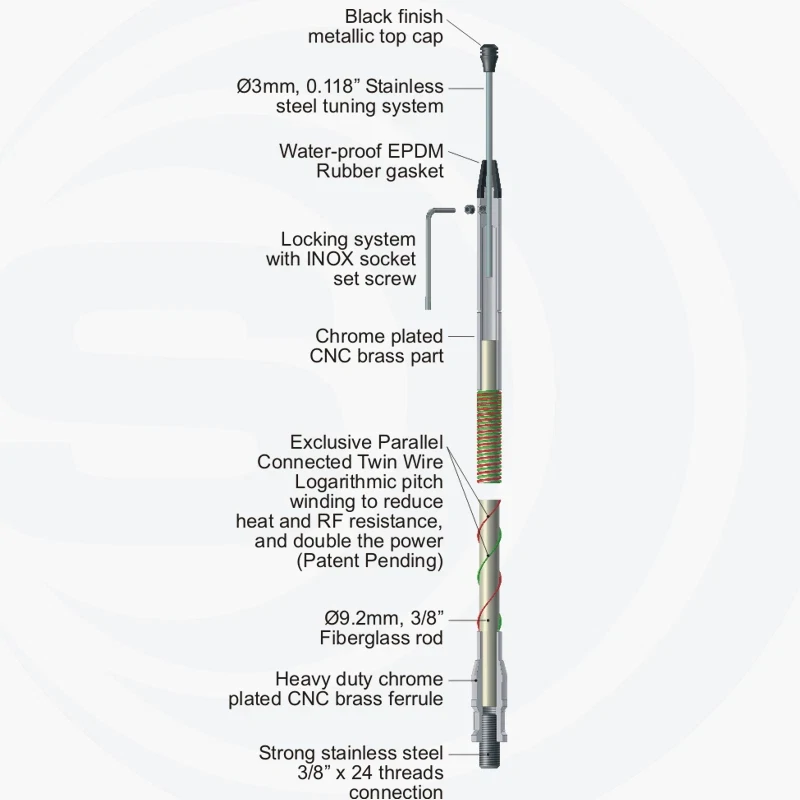

Twin wire - logarithmic loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
TWIN-LOG 3:
26.6 … 27.9 MHz Tunable
TWIN-LOG 4:
26.65… 27.75 MHz Tunable
TWIN-LOG 5:
26.7 … 27.7 MHz Tunable
Systems: CB 27MHz
Bandwidth:
TWIN-LOG 3:
≥ 600KHz @ SWR ≤ 2
TWIN-LOG 4:
≥ 1.1MHz @ SWR ≤ 2
TWIN-LOG 5:
≥ 1.5MHz @ SWR ≤ 2
Max Power:
TWIN-LOG 3:
300 Watts (CW) continuous
900 Watts (CW) short time
TWIN-LOG 4:
500 Watts (CW) continuous
1500 Watts (CW) short time
TWIN-LOG 5:
1000 Watts (CW) continuous
3000 Watts (CW) short time
Connector: 3/8'' Thread
Mechanical Data:
Materials: Copper, Chromed brass, Stainless steel, Fiberglass
Height (approx):
TWIN-LOG 3:
945 mm / 3.1 ft
TWIN-LOG 4:
1250 mm / 4.1 ft
TWIN-LOG 5:
1475 mm / 4.84 ft
Weight (approx):
TWIN-LOG 3:
300 gr / 0.66 lb
TWIN-LOG 4:
350 gr / 0.77 lb
TWIN-LOG 5:
390 gr / 0.86 lb
Mounting type: 3/8'' Thread

Adaptor: CB-HDS 3/8-24 female / UHF-female (SO-239) (P/N:2508106.00)

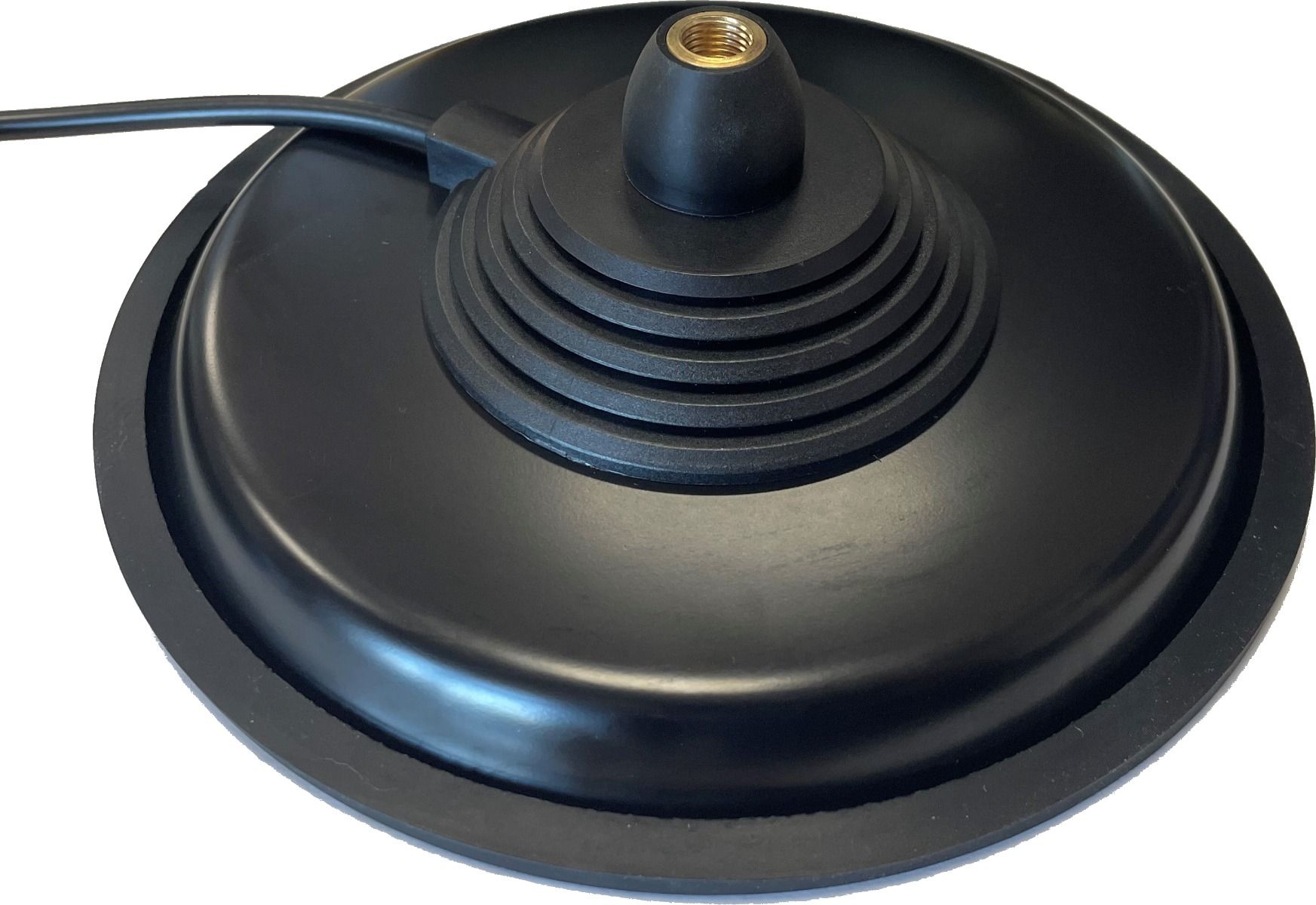

WITH A MAG MOUNT 3/8 WITH CABLE RG 58
