NEW Sirio Monsoon 10-11m (26-30MHz) Base Antenna
Product Code: xUHiTIl
Rating: Be the first to write a review
Brand: Sirio antennas
Weight: 3000.0g
Product Condition: New
About NEW Sirio Monsoon 10-11m (26-30MHz) Base Antenna

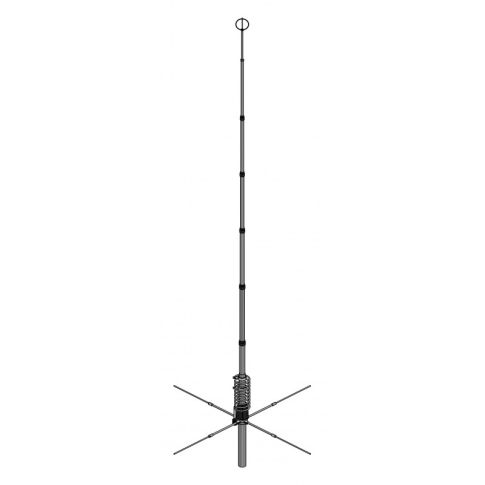

The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz. Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024.
High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX.
Features
Frequency: 26-30MHz Tunable
Power: 1000W CW
Gain: 1.2 dBd, 3.35 dBi
Bandwidth SWR ≤ 2: ≥ 1400kHz @ 27.2MHz
Height (approx):7180 mm
Radial lenght : 2000mm
Weight (approx): 3Kg
Connection: SO239
Made of aluminium alloy 6063 T-832

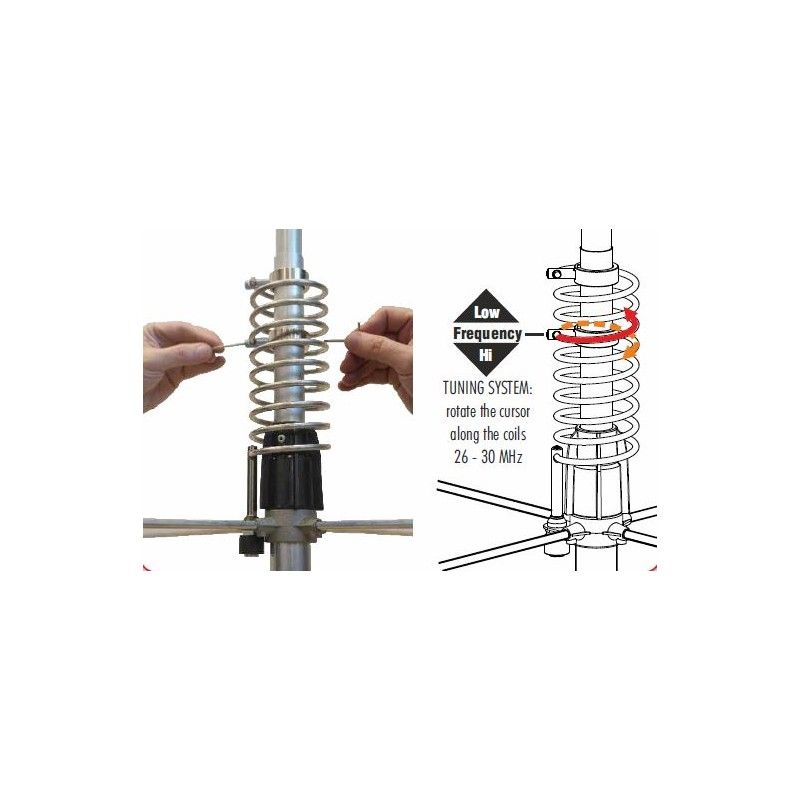

Base station antenna Tunable by acting on the bottom coil
Low radiation angle for excellent DX

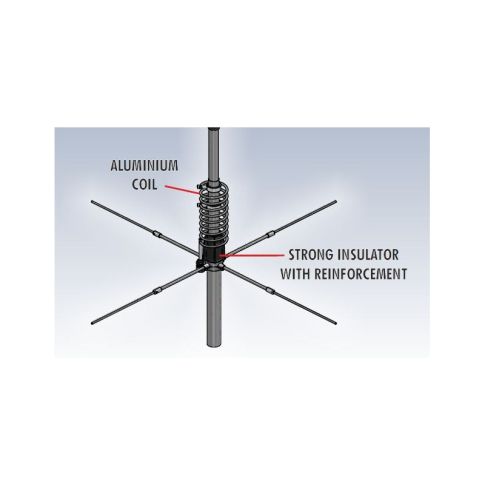

Big coil made of aluminium wire Ø6mm AWG-3
Omnidirectional
Plastic jointing sleeves
High power handling capability
Top anti static cage
Strong PC insulator with reinforcement fins
Attachments
MONSOON_-_LEAFLET (820.88 kB)
The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz. Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024.
High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX.
Features
Frequency: 26-30MHz Tunable
Power: 1000W CW
Gain: 1.2 dBd, 3.35 dBi
Bandwidth SWR ≤ 2: ≥ 1400kHz @ 27.2MHz
Height (approx):7180 mm
Radial lenght : 2000mm
Weight (approx): 3Kg
Connection: SO239
Made of aluminium alloy 6063 T-832
Base station antenna Tunable by acting on the bottom coil
Low radiation angle for excellent DX
Big coil made of aluminium wire Ø6mm AWG-3
Omnidirectional
Plastic jointing sleeves
High power handling capability
Top anti static cage
Strong PC insulator with reinforcement fins
Attachments
MONSOON_-_LEAFLET (820.88 kB)
