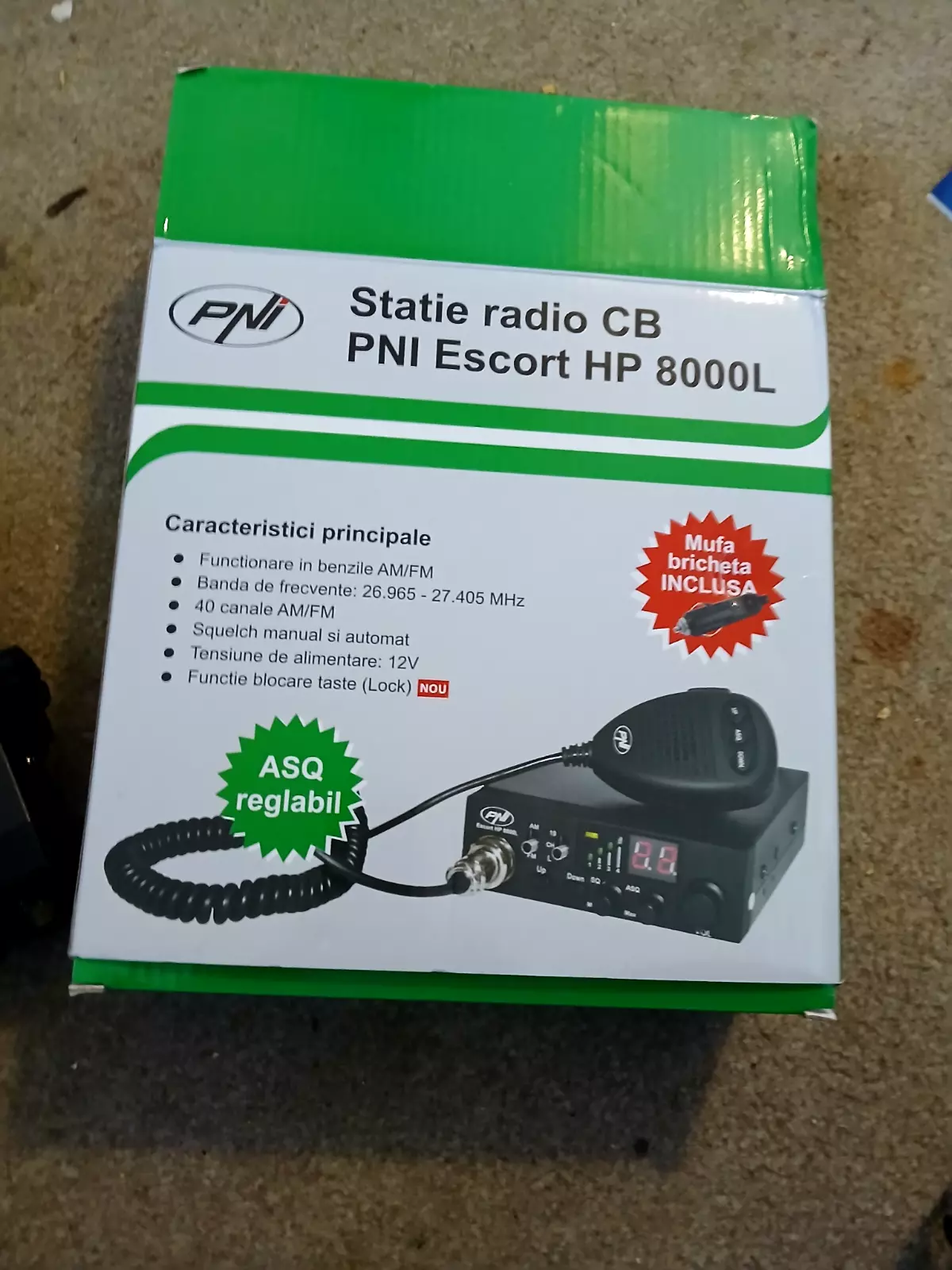

PNI HP8000L AM/FM 12v CB Radio Transceiver
Product Code: OaFPTbZ
Rating: Be the first to write a review
Brand: PNI
Weight: 1000.0g
Product Condition: New
A high quality CB rig covering the UK40 and EU CB frequencies.
The 8000l. whilst traditional in appearance. has a wealth of modern features typically only found in more expensive rigs. Included with the radio is DC lead with fitted cigarette plug. perfect for connecting straight to the car or van. as well as a command microphone featuring Up and Down channel selection buttons.
The radio features RF gain and squelch controls. as well as a quick access channel 9/19 knob. Also supplied with the kit is a mounting trunion bracket. with thumb screws. as well as a microphone hanging bracket.
Key Features/Specifications:
Frequency Range : 25.615 - 28.305 MHz
Channels 80 AM/FM
Frequency control P.L.L.
Operating temperature -10°/+55°C
DC input voltage 13.8Vdc ±15%
Size 38mm (h) x 115mm (W) x 150mm (D)
Weight 0.8 kg
Transmitter
System CPU controlled P.L.L. synthesizer
Maximum RF power 4W at 13.8Vdc
Modulation 85% to 90% (AM)
1.8 KHz ±0.2 KHz (FM)
ANT impedance 50 ohm unbalanced
Current drain 1000mA (at no modulation)
Receiver
System CPU controlled Double conversion super
IF 1° 10.7 MHz / 2° 450 KHz
Sensitivity -120dBm for 12dB SINAD (FM)
-107dBm for 12dB SINAD (AM)
Audio output @10% THD 2.5W at 8 ohm
Audio distortion <8% at 1 KHz
Image rejection 65dB
Adjacent channel 85dB
Signal ise ratio 45dB
Current drain 220mA (stand-by)
The 8000l. whilst traditional in appearance. has a wealth of modern features typically only found in more expensive rigs. Included with the radio is DC lead with fitted cigarette plug. perfect for connecting straight to the car or van. as well as a command microphone featuring Up and Down channel selection buttons.
The radio features RF gain and squelch controls. as well as a quick access channel 9/19 knob. Also supplied with the kit is a mounting trunion bracket. with thumb screws. as well as a microphone hanging bracket.
Key Features/Specifications:
Frequency Range : 25.615 - 28.305 MHz
Channels 80 AM/FM
Frequency control P.L.L.
Operating temperature -10°/+55°C
DC input voltage 13.8Vdc ±15%
Size 38mm (h) x 115mm (W) x 150mm (D)
Weight 0.8 kg
Transmitter
System CPU controlled P.L.L. synthesizer
Maximum RF power 4W at 13.8Vdc
Modulation 85% to 90% (AM)
1.8 KHz ±0.2 KHz (FM)
ANT impedance 50 ohm unbalanced
Current drain 1000mA (at no modulation)
Receiver
System CPU controlled Double conversion super
IF 1° 10.7 MHz / 2° 450 KHz
Sensitivity -120dBm for 12dB SINAD (FM)
-107dBm for 12dB SINAD (AM)
Audio output @10% THD 2.5W at 8 ohm
Audio distortion <8% at 1 KHz
Image rejection 65dB
Adjacent channel 85dB
Signal ise ratio 45dB
Current drain 220mA (stand-by)
