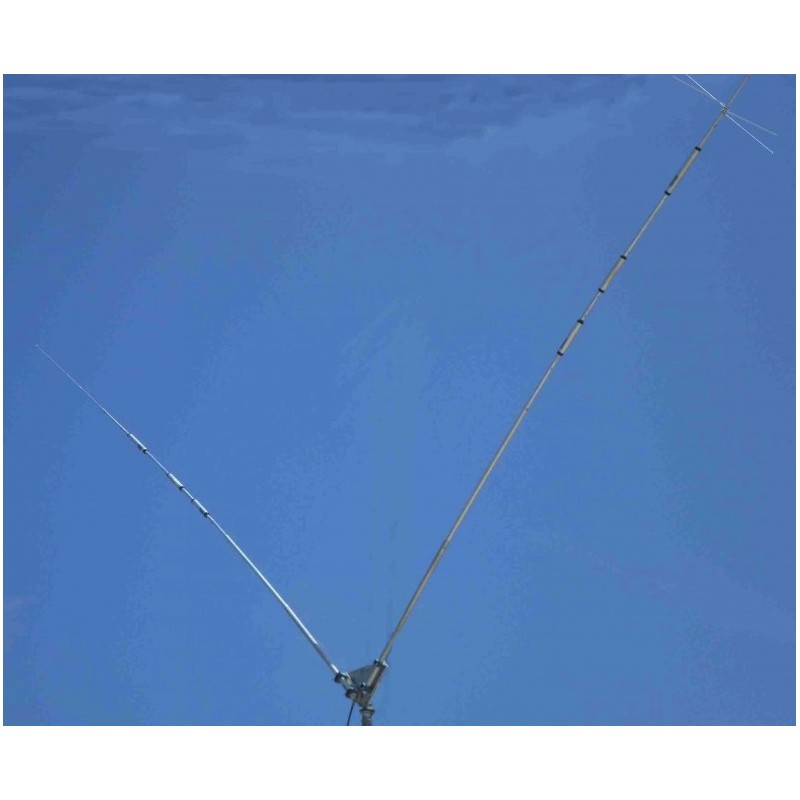

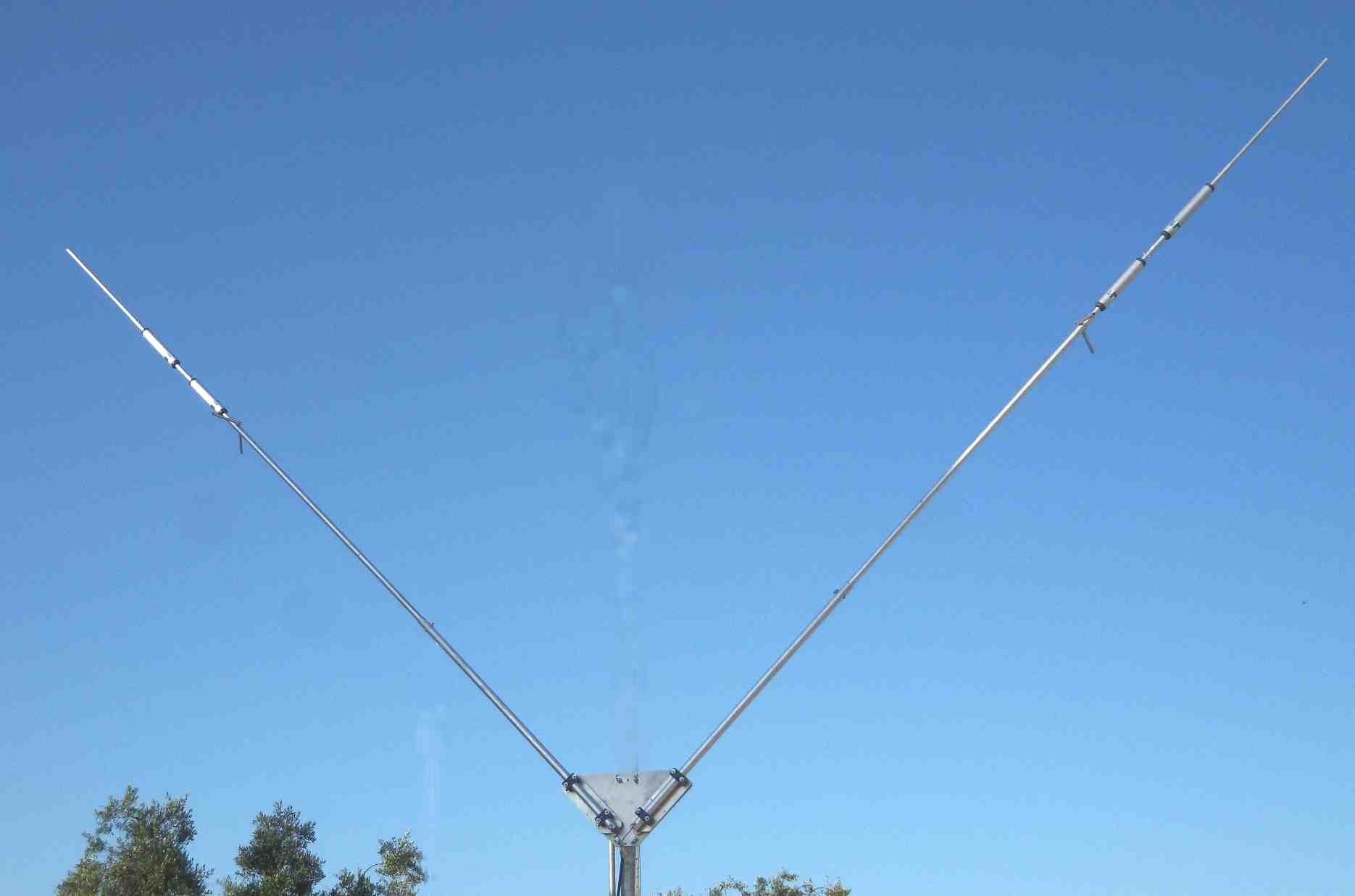

Antenna HF Prosistel PST-152TV Trapped multiband 10-15-20m, in V configuration, omnidirectional

Trapped multiband dipole 10-15-20m, in V configuration, omnidirectional.

- 2KW pep

- Arm length : 4m, projection on the ground 3m per arm

- Mounts on poles of:

- 40 to 50mm

- 60mm optional.

- Suggested height: at least 5m, but works well even at 2m.

- The antenna does not require bracing.

- Weight 7Kg

- Balun 1:1 optional

GENERAL SPECIFICATIONS:

- Gain: 0 dBd;

- Impedance : 50 ohm;

- VSWR : <1:1.5 band ends within 1:1.8;

- Rotation radius : from approximately 3 to 4m depending on the version;

- Weight : approximately 6-8kg;

- Accepts mast : 48mm (standard) or 60mm (optional);

- Material : AL6060T6, stainless steel bolts.

ROS AND RETURN LOSS CURVES


HF and WARC multiband dipole, trapped, in V configuration. The independent traps give the antenna better performance in terms of band-by-band adjustment and useful bandwidth. Available in the basic 10-15-20m versions, expandable with a 40m kit and in the 12-17m version, expandable with a 30m or 40m kit.

Very robust construction, with stainless steel bolts, the highly insulated copper wire traps with fiberglass supports, allow use even with powers up to 2KW pep ssb. For optimal operation, we recommend mounting it at a height of at least 4-5m from the ground. However, it works well even at 2m from the ground. We recommend using the 1:1 balun. Being practically omnidirectional, it does not require a rotor

Before purchasing, check the antenna measurements carefully to see if they are suitable for your structure.
