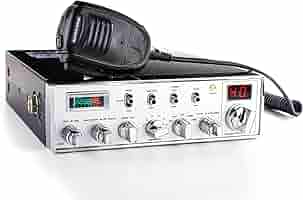

Superstar 3900 cb mobile transceiver

The Super Star 3900 is a 27 Mhz CB mobile radio with 40 multi-standard channels and AM/FM/USB/LSB with a power of 4W (AM/FM) and 12W in sideband (SSB). The new SuperStar 3900 maintains the essence of the classic model recognizable by its iconic design, its control buttons, the microphone input on the side, the analog meter, among others.

In 2023, the new Super Star 3900 comes with some improvements, such as: display with function indicator and screen lighting adjustment, new handheld microphone with channel change buttons (Up/Down), new board design with micro components which translates into a reduction in the overall weight: improvements that in no way alter its essence and that make the Super Star 3900 remain stronger than ever as an icon of the citizen band radio.

The Super Star 3900 has been basically designed as a mobile device, although it can also be used as a base station connected to a direct current power supply and a corresponding antenna.

• CB-27 mobile radio
• Channels: 40 Multi-standard
• Modes: AM/LSB/USB/FM
• Frequencies: 26.565 to 27.99125 MHz
• Tx power: 4W (AM/FM) 12W (SSB)
• Handheld microphone with channel change buttons (UP/Down)
• Backlit display with channel indicator and equipment functions menu
• Standing wave meter (SWR) and power

FUNCTIONS

• SWR, PWR, RX RSSI meter
• PC programmable
• SQ, ASQ function
• RF gain adjustment
• Microphone gain adjustment
• Programmable roger beep
• NB/ANL function
• Command notification by beep
• TOT function
• HI-CUT function
• Busy channel lockout
• Adjusting the screen illumination
• SWR protection
• Supply voltage protection
• VOX function
• Reception noise reduction
• Transmission noise reduction

SPECIFICATIONS

• AM/FM/SSB modulator
• Frequency Control: PLL Synthesizer
• Frequency stability: +/- 5 ppm
• Channel spacing 10 KHz
• Operating temperature: -20º to +55 ºC
• Antenna impedance: 50 Ohms
• Antenna connector: UHF, SO 239
• Supply: 13.8 V DC
• Consumption: 5 A
• Dimensions: 287 (length) x 200 (width) x 61 mm (height)
• Weight: 1,500 g

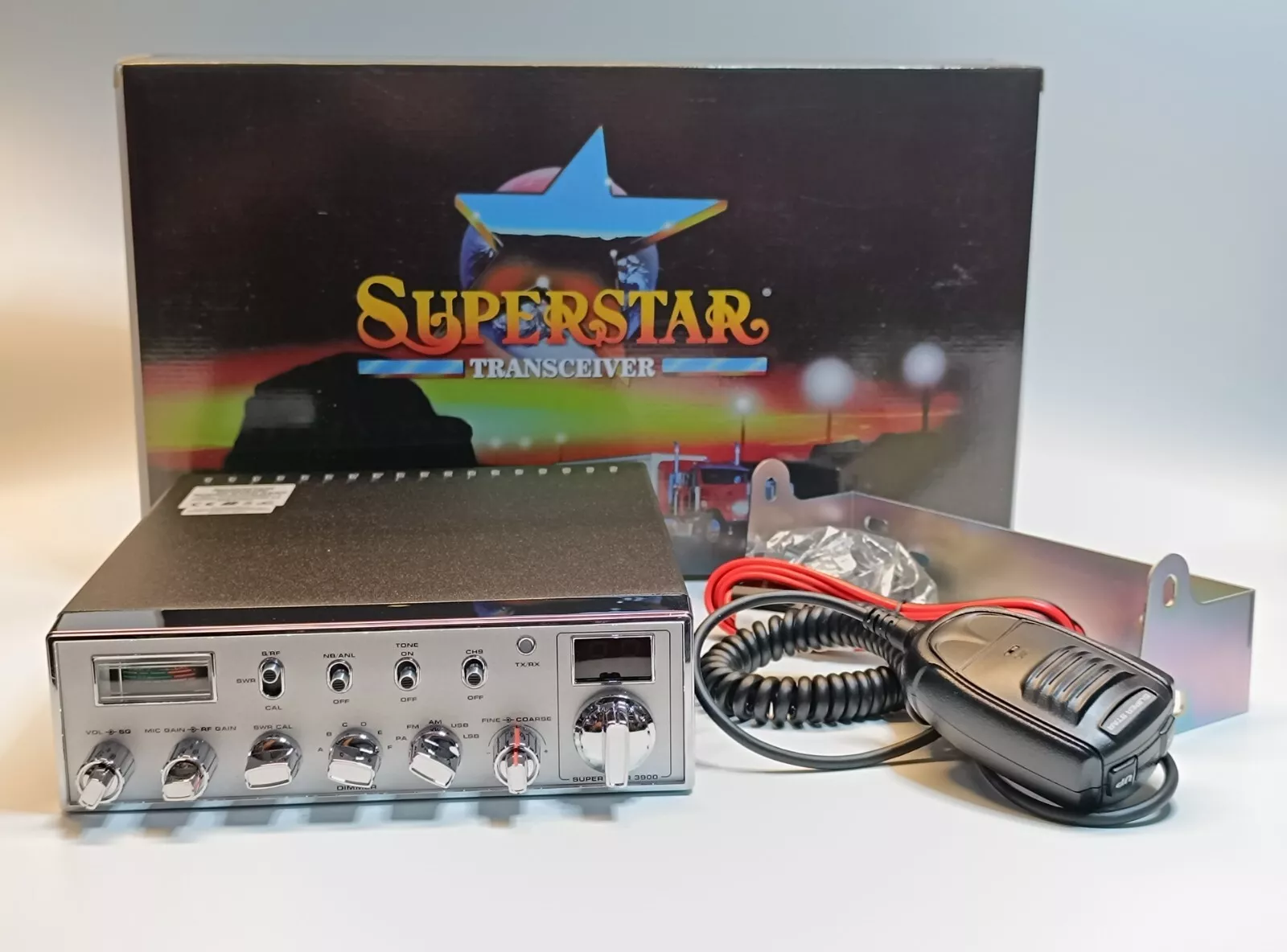

CONTENTS

• CB Transceiver
• Handheld microphone with up/down
• Mounting bracket
• Microphone support
• Anti-slip pads
• Power cord
• Screws for mounting bracket
• Washers for mounting bracket
• Clamping screws
• Spare fuse (10 A, 250 V)
• Self tapping screws
• Flat washers
