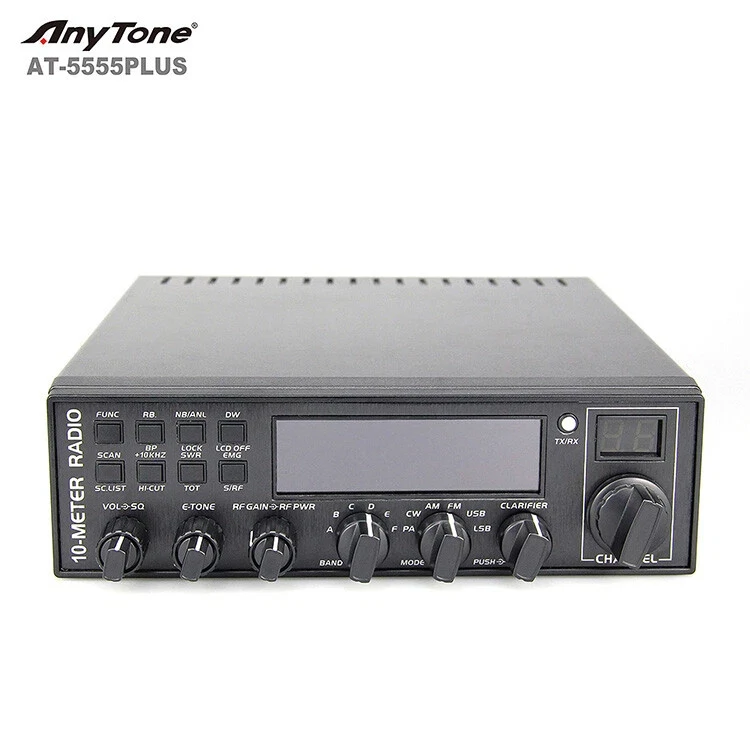

AT-5555 PLUSN – (New Version) Mobile 10M HF Transceiver

Anytone AT-5555PLUS/N has the new the RX noise reduction option, NRC (extra PCB inside the radio) With a completely new designed PCB board the Anytone AT-5555 PLUS is one of the most modern and up-to-date 10M radios on the market.

Updates and new (menu) functions are:

VOX
CTCSS/DCS codes
RX compander
Noise gate
RX noise reduction (extra PCB inside the radio)
Microphone type selection: electret or dynamic
Program cable connector on the backside of the radio (program cable is optional)
Extra ventilation holes on the top and bottom cover
Amateur radio HF mobile transceiver, covers the 28 MHz frequency band reserved to Amateur Radio communication. Frequency range 28.000-29.700 KHz, adjustable frequency steps (10Hz, 100Hz, 1KHz or 10KHz). Adjustable TX RF power, 12W max AM/CW, 40W max FM/SSB. Multiple Clarifier operating modes. Flexible menu functions and PC programming software to fit radio to each operator’s demand. Large backlighted amber colour LCD Display with digital S/RF Meter, shows full 7-digit frequency readout, plus 2- digit LED display. RF Gain, RF Power, Clarifier, Dual Watch, Scan, TOT, NB/ANL, LOCK, LCD Off, +10KHz, SQ/ASQ functions.

High quality Dynamic microphone with UP/DN frequency and AQ controls. DC Voltage display function. SWR protection and power supplied voltage protection. Software allows to program frequency range limits, frequency channels, Mic Gain limits, factory reset function, CW side tone frequency and volume, RB holding time and much more.

Features:

Backlighted LCD Display (amber colour) with 7-digit frequency readout
2-Digit Channel Number readout
6 Frequency Bands, 60 Channels (programmable) in each band
RF Power max 12W AM/CW, 40W FM, 40W SSB
Digital S/RF Meter, RG Gain control, RF Power control
Scan/SC List, Dual Watch, EMG, RB, NB/ANL, LOCK, LCD Off, TOT, HI-Cut

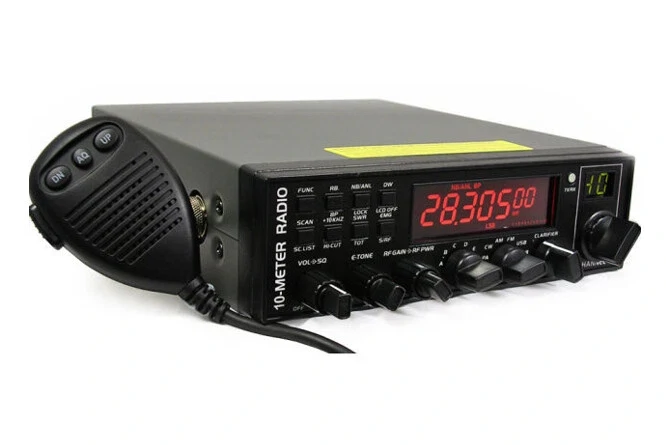

Dynamic Microphone with UP/DOWN/AQ (Auto Squelch) controls
Quick UP/Quick DOWN frequency selection
PA (Public Address) circuit
S/SQL (manual or automatic Squelch control)
Technical Specifications:

Frequency Range 28.000 - 29.700 MHz HF 10 Meter Band AM/FM/SSB/CW
Frequency Range 25.615 - 30.105 MHz (AT-5555EX version only)
Antenna Connector UHF SO239
Temperature Range -15/+50 °C
Input Voltage 13.8V (15.9V max / 11.7V min) - 9A max at 40W SSB PEP
Radio is fully PC programmable (with optional PC Interface Cable)
Dimensions: 28cm x 25cm x 6cm
Weight: 2.8kg

---
