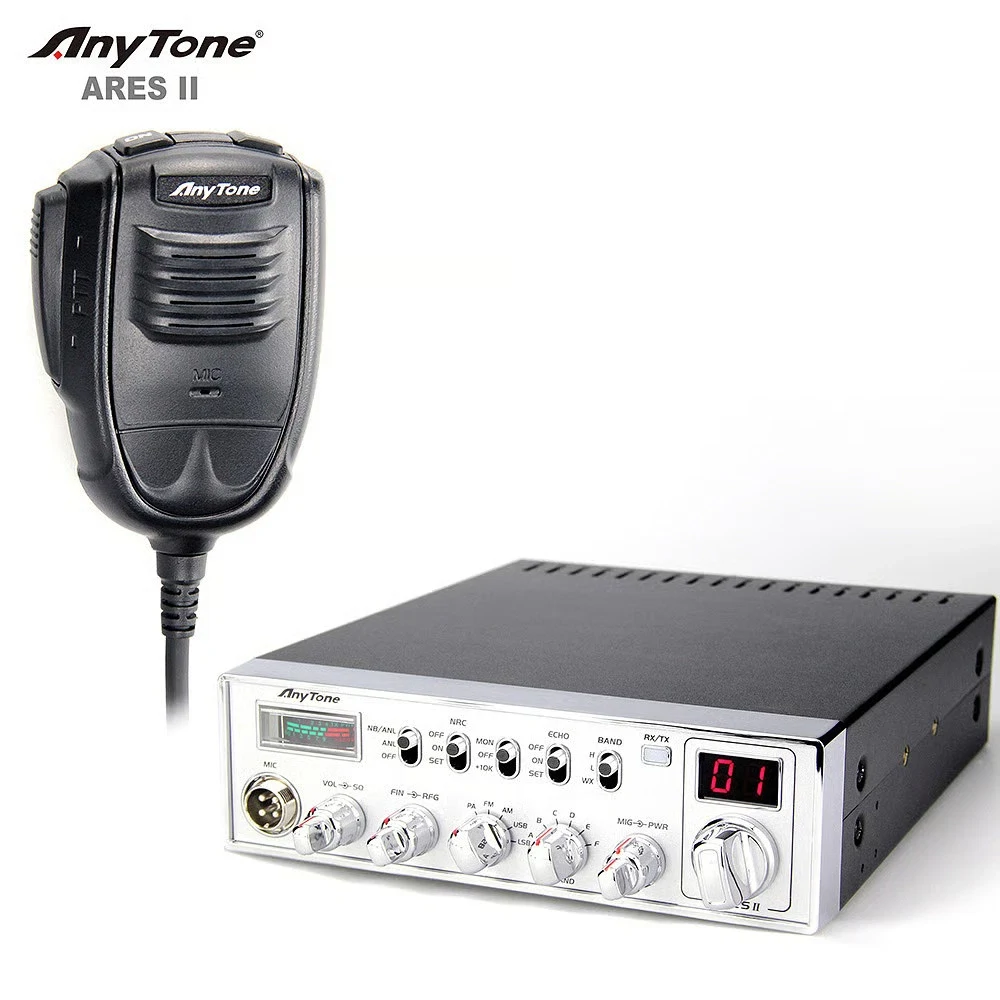

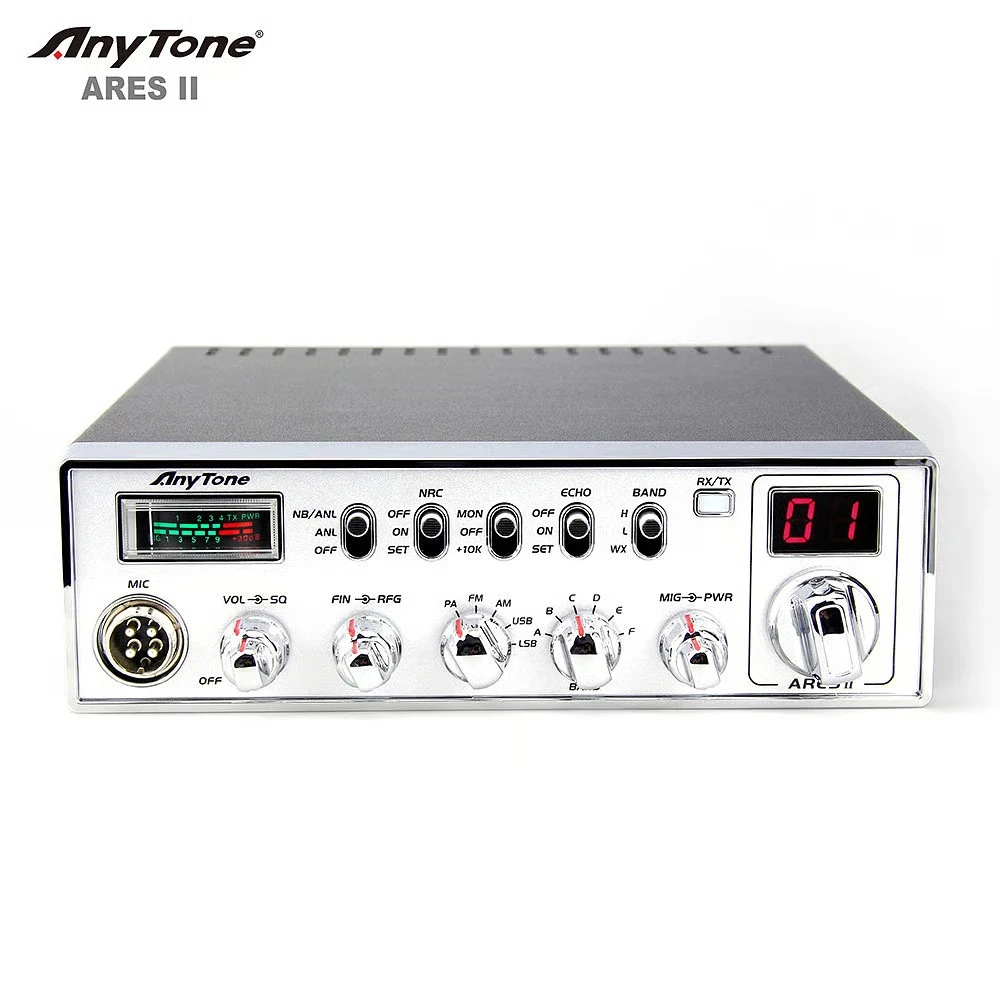

About AnyTone ARES II – AM/FM/SSB 10M Mobile Transceiver
Produced by the latest technology, AnyTone ARES II – AM/FM/SSB Transceiver Radio. Designed to meet varied needs of customers – the product embodies superb characteristics that can be applied to wide range.

Features

FM/AM/SSB mode
Weather Channel 150-170MHz programmable(Optional)
CTCSS/DCS Code(Optional)
PWR, RX RSSI S-Meter
PC programmable
Echo Function
SQ, ASQ Function
RF Gain Adjustment
Mike Gain Adjustment
H/L power
Programmable RB
NB/ANL Function
Offset Function
Beep Voice Prompt
+10KHz Function
TOT Function
HI-CUT Function
Busy channel lock
Monitor
LED Brightness Adjustment
SWR Protection
Voltage Protection
Specification

Frequency Range: 28.000-29.695MHz(Programmable)
Frequency Band: L band: A/B/C/D/E/F H band : A/B/C/D/E/F
Channels: 40channels(programmable)in each band
Frequency Control: Phase-Locked-Loop Synthesizer
Frequency Tolerance: ± 5.0 ppm
Input Voltage: 13.8V
Microphone: with push-to-talk /UP/DN and coiled cord
Dimensions: L-287 x W-200 x H-61
Weight 1.75kg
Antenna Connector: UHF, SO239
Operating Temperature Range: -20℃to +50℃
